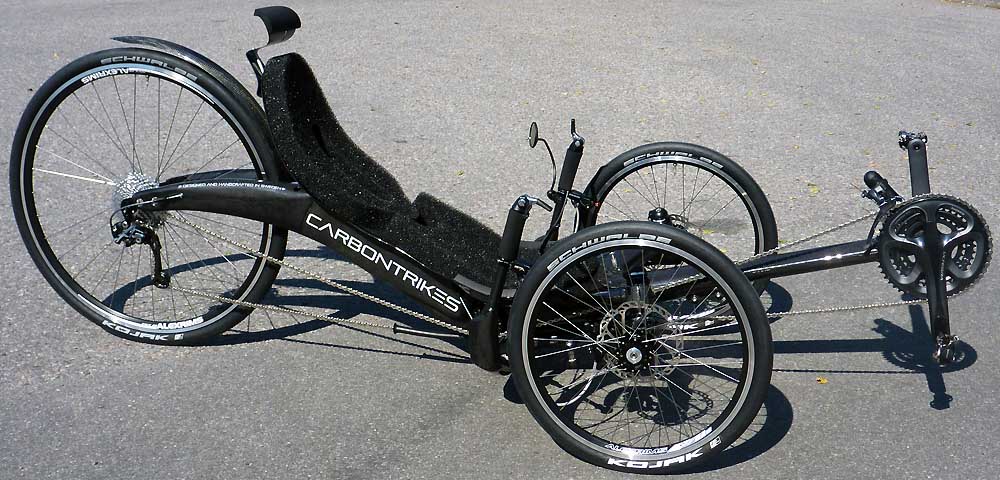

CARBONTRIKES Race
CARBONTRIKES Race is the world's lightest trike built in 100 % carbon fiber.
We exploit the potential of carbon fiber in a way that has never previously been used on a trike and have therefore made CARBONTRIKES both extremely light and stiff. The frame construction of carbon fiber also reduces road vibrations, so it is more comfortable than commonly.
CARBONTRIKES has many innovative features - handy storage compartment in the frame, elliptical shape of the boom and hydraulic brakes as standard, to name a few unique features.
The Race model is a hand crafted, fast trike, ideal for training, commuting or touring, without sacrificing the sporty experience. The trike is designed so that it can be fitted to your needs whether it is for the sporty or practical way.
For the experienced who compete or use the trike for fast training or in the mountain and are looking for a super lightweight trike we recommend CARBONTRIKES Race SL it is a real pulse raiser. The one who are, looking for an aerodynamic trike made for breaking speed records on the road, we recommend to take a look at CARBONTRIKES Race Aero.
Price
USA and outside EU: 6490 US$
EU 5950 € (include 25% Swedish VAT)
The trike is assembled, adjusted and the steering is laser aligned. In a just a few minutes you can adjust the trike to your personal needs and preference. The few tools required are included.
Frame-kit:
USA and outside EU: 5490 US$
EU 4950 € (include 25% Swedish VAT)
The frame-kit includes: Frame, adjustable carbon fiber seat part, carbon fiber boom, front wheels, carbon fiber wheel mountings, 3 x headset, carbon fiber handlebar, tie rod, bolts and clamps. The frame has been completely assembled steering and front wheels. The steering is laser aligned.
FRAME & FRAME PARTS
Frame: CARBONTRIKES Race, Handmade in strong and lightweight aero grade UD carbon fiber prepreg in a monocoque construction. Naca 0021- profile. Integrated adjustable seat. Clear coated visual carbon 3K weave with scratch and UV-resistant varnish.

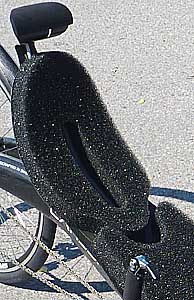

Adjustable part of the seat: CARBONTRIKES Carbon fiber non-crimp and 3K twill weave baked in autoclave with special UV-resistant gelcoat, polished.
Handlebars & Steam: CARBONTRIKES Race, Integrated aero carbon unit. Handmade in strong and lightweight aero grade UD carbon fiber prepreg in a monocoque construction. Clear coated visual carbon 3K weave with scratch and UV-resistant varnish. Naca 0024-profile.
Boom: CARBONTRIKES, Handmade in strong and lightweight aero grade UD carbon fiber prepreg in a monocoque construction. Anti-rotation construction. Clear coated visual carbon 3K twill weave with scratch and UV-resistant varnish.
King Pin: CARBONTRIKES Carbon fiber baked in autoclave, UD and random fiber. Clear coated with scratch and UV-resistant varnish.
Link Rods: CARBONTRIKES Race, aluminum, black anodized with maintenance-free rod ends.
Aluminum Parts: Super high strength 7075-T6, CNC-machined, black anodized.
Frame Color: Carbon fiber
COMPONENTS
Rear Derailleur: Shimano XT 10-speed
Front Derailleur: Shimano Ultegra
Shifters: Shimano Dura-Ace 10-speed

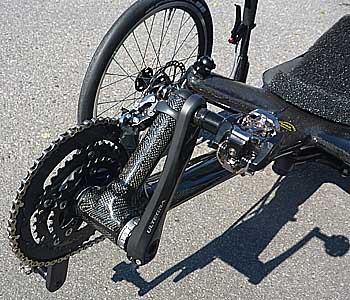

Crankset: Shimano Ultegra 52-39-30
Cassette: Shimano SLX 11-36 10-speed
Chain: YBN S10C hollow pin
Idler: Aluminum 7075-T6
Headset: 3 x Tange Seiki, Japan machine bearings
Front Brakes: Tektro Volans, Hydraulic disc, 160 mm disc (Shimano Deore Hydraulic, when ordering front fenders)
Rear Wheel: Alex DA16 Aero, Black, 32 holes, super light hub with alu body and axle, Sapim Race reduced spokes, brass nipples.
Front Wheels: Alex DA16 Aero, Black, 32 holes, ultra strong side-hinged hub with tapered 25mm 7075-T6 alu axle. Sapim Race reduced spokes, brass nipples.
Front Tires: Schwalbe Kojak, foldable (406x35)
Rear Tire: Schwalbe Kojak, foldable (622x35)
Tubes Front and Rear: Schwalbe
Seat Pad: Comfort (included), Optional: Ventisit 105 US$/105 €
Pedals: Optional
Neck Rest: Optional, Wide: 120 US$/120 €, SL: 195 US$/195 €
|
GEOMETRY
Total Length: 215 cm* / 7'*
Total Width: 74 cm / 29"
Bracket Height: 40 cm* / 15,7"*
Seat Angle: 28°
Height: 70 cm* / 27,5"*
Seat Height: 20 cm / 7,9"
Wheel Base: 115 cm / 45"
Wheel Track: 70 cm / 27,5"
Ground Clearance: 8 cm / 3,1"
Turning Circle: 510 cm / 16' 8"
Steering: Self centering, Ackerman compensated, indirect steering with fully eliminated brake-steer and bump-steer, optimized for high speed cycling.
Front Wheels: 406 mm (20")
Rear Wheel: 622 mm (28”) option: 559 mm (26")
Max tire width: front 42 mm and rear 40 mm (up to 57 mm with 26”)
Weight: 13,2 kg** / 29,1 lb**
Person Length: 160-195 cm / 5',3"-6',5" Shorter and taller on request, adjusted via boom and seat
X-seam: 90-125 cm / 35"-49"
Maximum Body Weight: 105 Kg / 232 lb
Maximum Load: 120 Kg / 265 lb

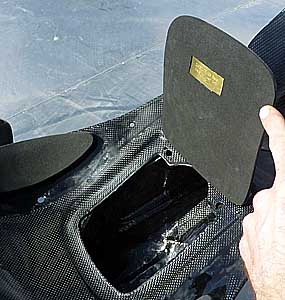

Storage Space: Over 6 Liters / 1,6 US gal inside the frame, easy access
* Size adjusted for a 180 cm / 5,9 ft cyclist.
** The weight does not include pedals and seat pad. The weight can vary +/- 5%, then each trike is handcrafted.
Product prices and configuration are subject to change without prior notice.
|
|
