CARBONTRIKES Race Aero




Super aerodynamic – the fastest trike in the world!
Carbon fiber aero wheels
Super lightweight
Advanced custom carbon fiber lay up

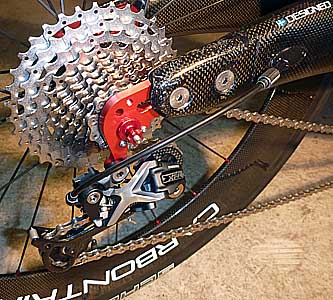

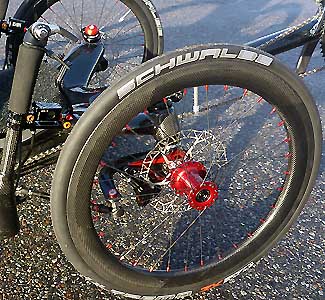

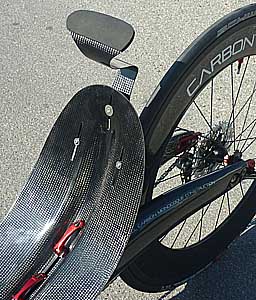

CARBONTRIKES Race Aero front wheel CARBONTRIKES Race Aero neck rest CARBONTRIKES Race Aero gear


CARBONTRIKES Race Aero

The CARBONTRIKES Race Aero model is a further development of the world's lightest and fastest trike, the successful CARBONTRIKES Race. Here we have focused on the aerodynamics together with a super low weight. To keep the weight down to a minimum we have used an advanced lay-up of carbon fiber in the frame, the aero profile handlebar and using of lightweight components. We have even use hi-grade titanium screws on selected places. By also using super high profile carbon fiber wheels, we have been able to reduce the wind resistance even more and will by that save times every kilometer on a racing event or fighting against a strong head wind.

On the Aero model we optimizes the carbon fiber lay-up based to the customer bodyweight, length and riding style. CARBONTRIKES Race Aero is best suitable for competition, fast training and will of course be appreciates by every trike rider who searches an extremely light, fast, and hand-built trike that also attracts attention for its beauty. Like all models of the CARBONTRIKES the laser adjusted steering is precise and provides millimeter precision during fast cornering and minimal rolling resistance.

For those who use their trike as a fast daily, for touring or looking for good comfort before maximum speed, we recommend CARBONTRIKES Race as it is a more robust trike or for the one who are counting grams when they are going up the mountain, we recommend to take a look at CARBONTRIKES Race SL.


Price

USA and outside EU: 8490 US$

EU 7950 € (include 25% Swedish VAT)
The trike is assembled, adjusted and the steering is laser aligned. In a just a few minutes you can adjust the trike to your personal needs and preference. The few tools required are included.


FRAME & FRAME PARTS

Frame: CARBONTRIKES Aero, Handmade in strong and lightweight aero grade carbon fiber prepreg in a monocoque construction. Advanced and optimized lay up based on UD for the customer weight. Naca 0021- profile. Integrated adjustable seat. Clear coated visual carbon 3K weave with scratch and UV-resistant varnish.

Adjustable part of the seat: CARBONTRIKES Carbon fiber non-crimp and 3K twill weave baked in autoclave with special UV-resistant gelcoat, polished.

Handlebars & Steam: CARBONTRIKES SL, Integrated aero carbon unit. Handmade in strong and lightweight aero grade UD carbon fiber prepreg in a monocoque construction. Clear coated visual carbon 3K weave with scratch and UV-resistant varnish. Naca 0024-profile.

Boom: CARBONTRIKES, Handmade in strong and lightweight aero grade UD carbon fiber prepreg in a monocoque construction. Advanced and optimized lay up based on UD for the customer length. Anti-rotation construction. Clear coated visual carbon 3K twill weave with scratch and UV-resistant varnish.

King Pin: CARBONTRIKES Carbon fiber baked in autoclave, UD and random fiber. Clear coated with scratch and UV-resistant varnish.

Link Rods: CARBONTRIKES SL Carbon fiber with low weight maintenance-free rod ends.

Aluminum Parts: Super high strength 7075-T6, CNC-machined, red anodized.

Frame color: Carbon fiber


COMPONENTS

Rear Derailleur: Shimano Dura-Ace 10-speed or Shimano XTR 10-speed

Front Derailleur: Shimano Ultegra

Shifters: Shimano Dura-Ace or Microshift Carbon 10-speed

Crankset: Shimano Ultegra double (50-34) or triple (52-39-30) (triple increase weight with 135g)

Cassette: 10 speed, Shimano Ultegra 11-28 (narrow range) or XT 11-36 (wide range) 10-speed (11-36 increase weight with 140g)

Chain: YBN S10C hollow pin

Idler: Aluminum 7075-T6

Headset: 3 x Tange Seiki, Japan machine bearings

Front Brakes: KCNC X7, Hydraulic disc, 160 mm disc, super lightweight, titanium screws (6AL-4V)

Rear Wheel: CARBONTRIKES aero carbon - super high profile carbon, 24 holes rim, super light hub with alu body and axle, Sapim CX-Ray aero spokes, red alu nipples, titanium QR.

Front Wheels: CARBONTRIKES aero carbon - semi high profile carbon 38 mm rim, 24 holes side-hinged red super light Tune Cannonball hub with tapered 25mm 7075-T6 alu axle. Sapim Laser double reduced red alu nipples.

Front Tires: Schwalbe Ultremo ZX, foldable (406x23)

Rear Tire: Schwalbe Ultremo ZX, foldable (622x23)

Tubes Front and Rear: Schwalbe lightweight

Seat Pad: Comfort (included), Optional: Ventisit 105 US$/105 €

Pedals: Optional

Neck Rest: Optional, Wide: 120 US$/120 €, SL: 195 US$/195 €

GEOMETRY

Total Length: 215 cm* / 7'*

Total Width: 74 cm / 29"

Bracket Height: 39 cm* / 15,4"*

Seat Angle: 28°

Height: 70 cm* / 27,5"*

Seat Height: 19 cm / 7,5"

Wheel Base: 115 cm / 45"

Wheel Track: 70 cm / 27,5"

Ground Clearance: 7 cm / 2,8"

Turning Circle: 510 cm / 16' 8"

Steering: Self centering, Ackerman compensated, indirect steering with fully eliminated brake-steer and bump-steer, optimized for high speed cycling

Front Wheels: 406 mm (20")

Rear Wheel: 622 mm (28”) option: 559 mm (26")

Max tire width front and rear: 28 mm

Weight: 11,7 kg** / 25.8 lb**

Person Length: 160-195 cm / 5',3"-6',5" Shorter on request, adjusted via boom and seat

X-seam: 90-125 cm / 35"-49"

Maximum Load: 105 Kg / 232 lb

Storage Space: Over 6 Liters/ 1,6 US gal inside the frame, easy access


* Size adjusted for a 180 cm (5,9 ft) cyclist.
** The weight does not include pedals and seat pad. The weight can vary +/- 5%, then each trike is handcrafted.


Product prices and configuration are subject to change without prior notice.
